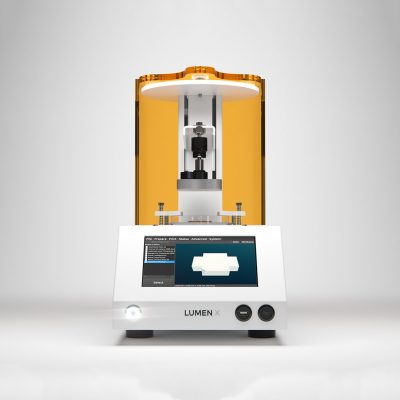

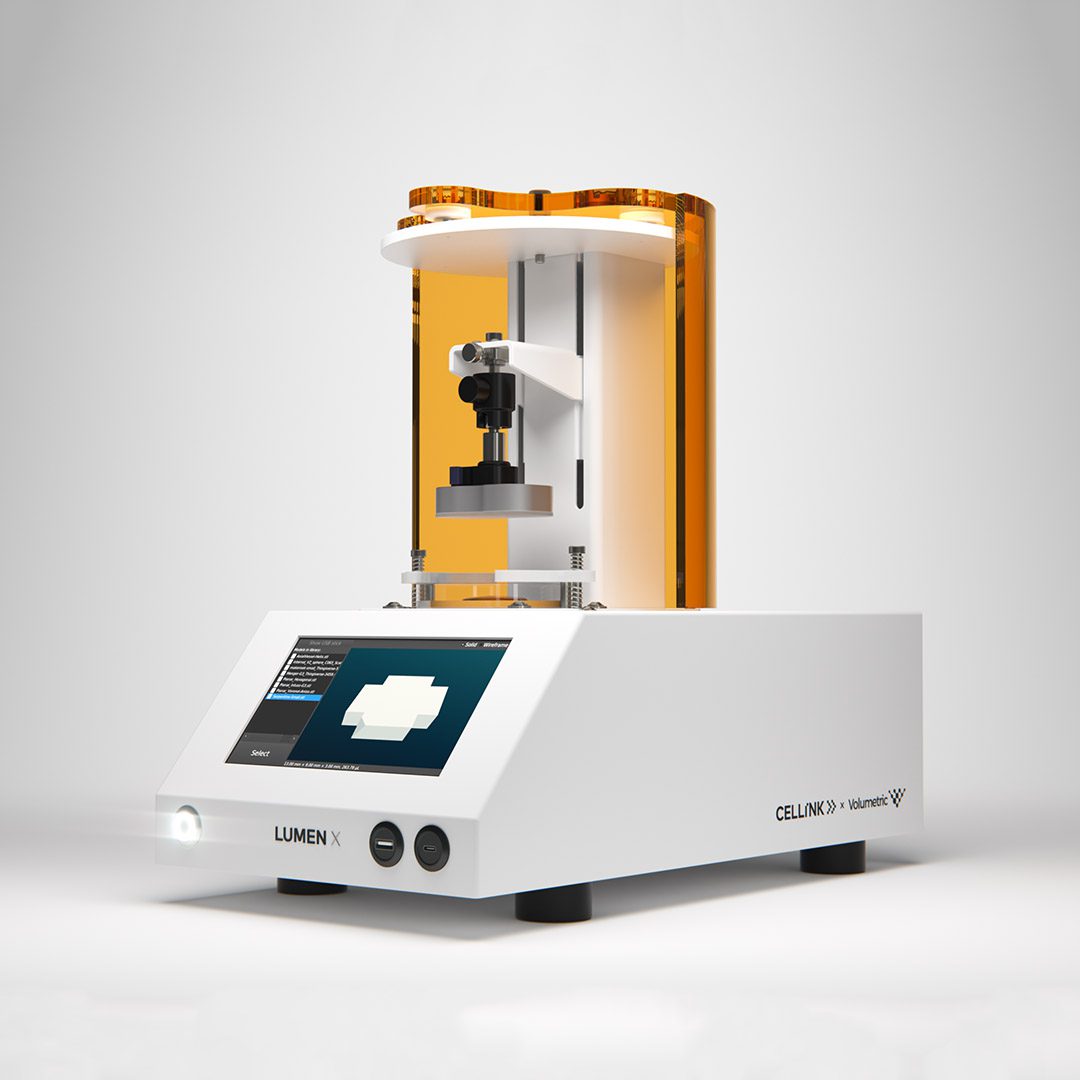

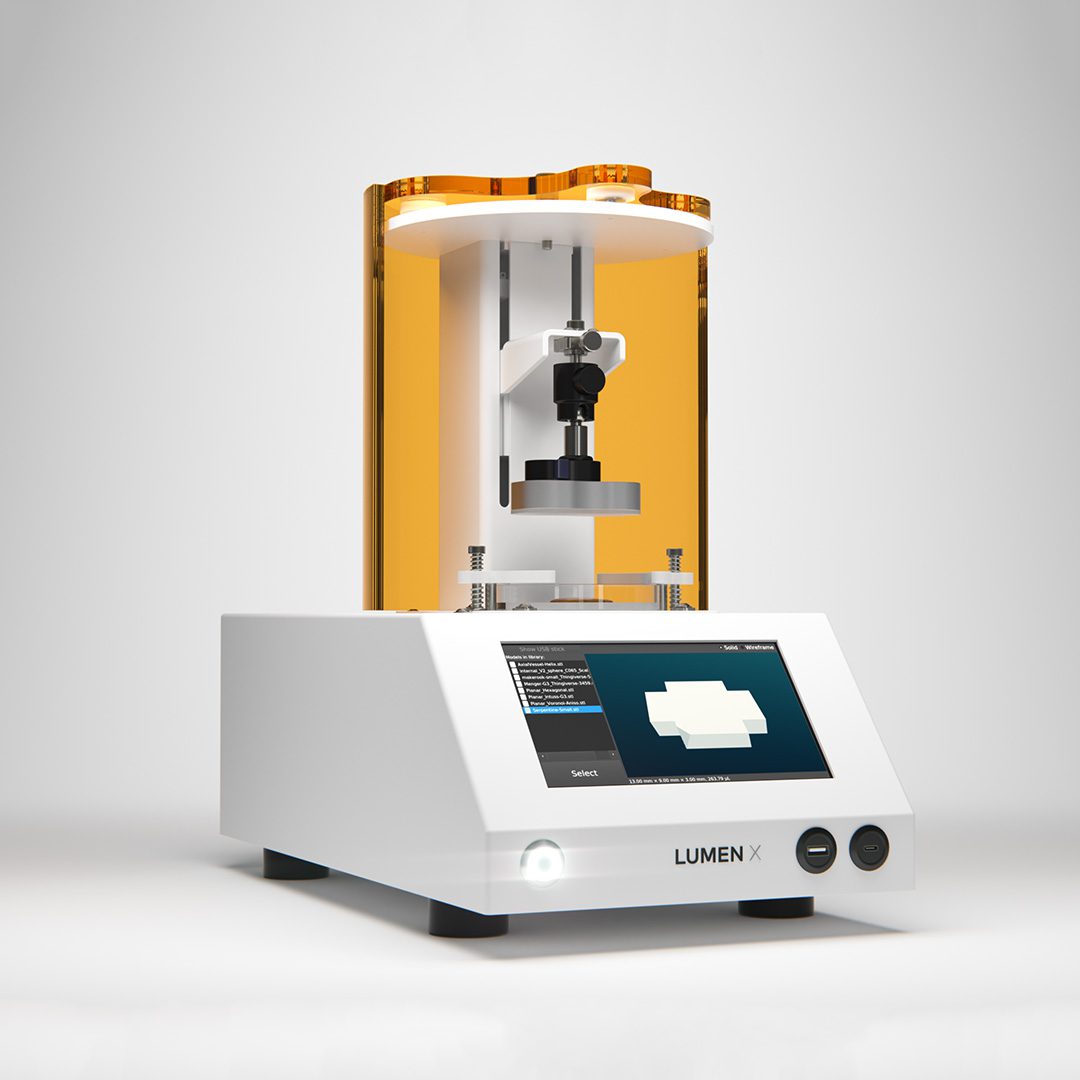

Experience the new standard for benchtop DLP bioprinters
Powered by our cutting-edge technology and harnessing 405 nm visible light, generation 3 of the LUMEN X™ brings a new degree of precision and utility to the light-based bioprinter space.
Years of listening to our customers’ needs and feedback have culminated in LUMEN X, packed with an array of new features and simplified workflows. Enabling greater results and allowing researchers across the world to create the future of health.
35 μm
Pixel Resolution
68x38x100 mm
Build volume
RT* – 60°C
Temperature range
* Room/Ambient temperature
Designed for live cell printing
The new tight temperature control, a smooth printing mechanism, and sterility across the printing workflow, join together to increase cell viability. The autoclavable build platform has increased reusability without compromising on sterility.
Grayscale Printing

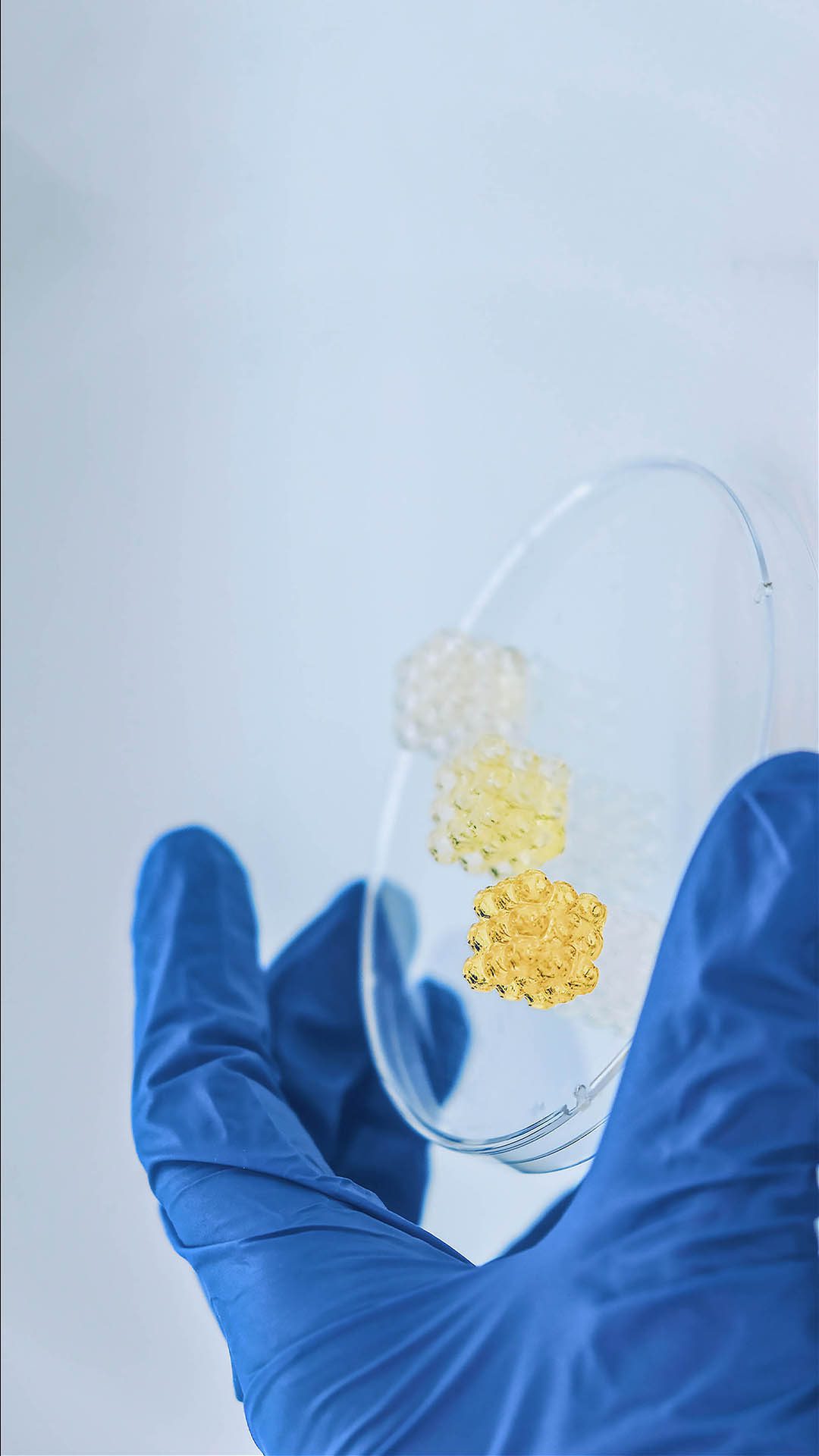

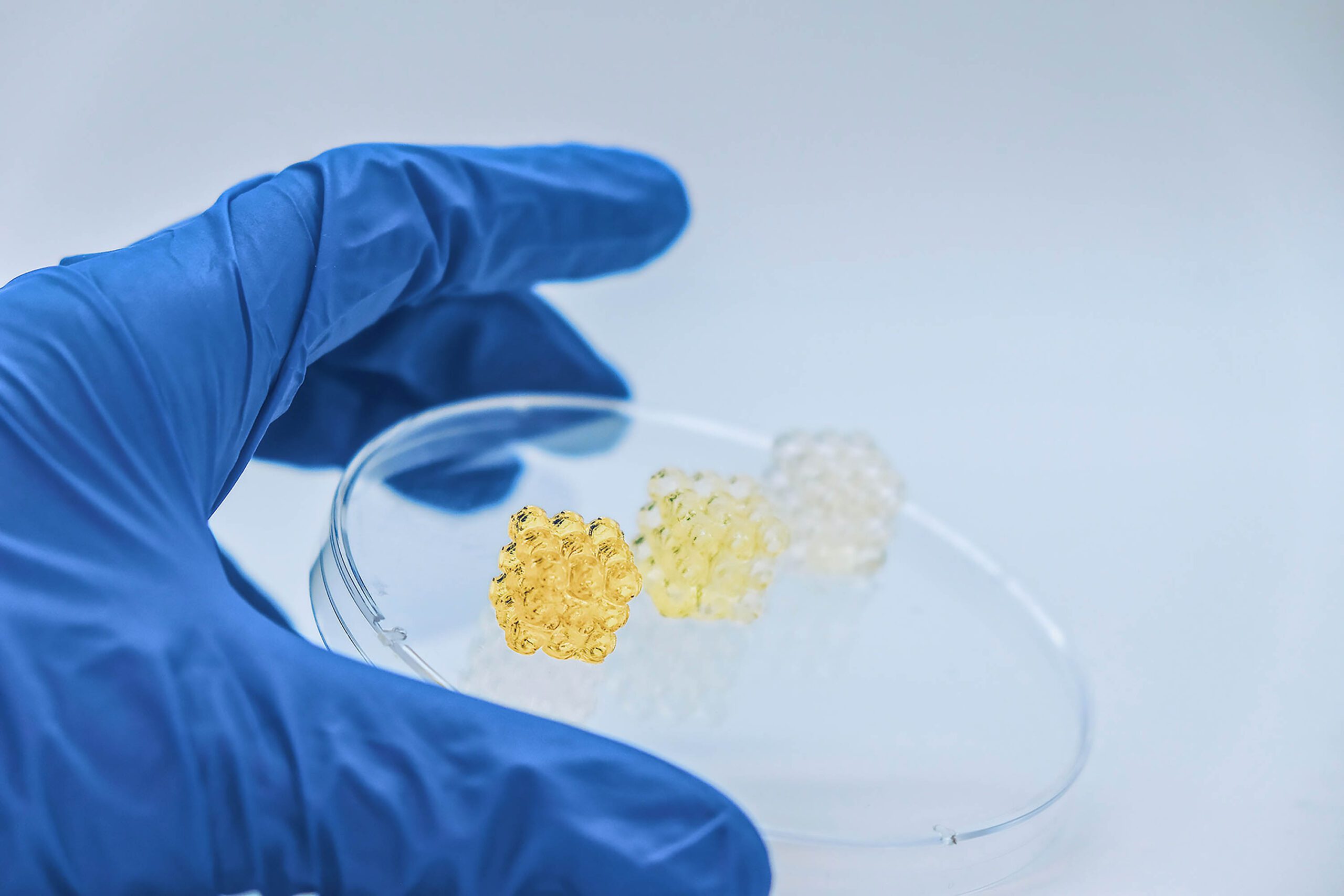

Accurately tune the stiffness of your material and create biomechanical gradients on demand to capture the finer details of in vivo biology
Tight Temperature Control
Work with a wider than ever range of materials or focus on studying the thermal properties of a single material by setting the temperature anywhere between room temperature and 60 °C.
Consistent prints - every time
With a uniform distribution of intensity across the entire build platform, the LUMEN X Gen 3 ensures consistent crosslinking of photoinks independent of position. Levelling up the ability for array printing.
Precise and complex printing
An intuitive software combined with high feature resolution and optimized photoinks makes working on organ-on-a-chip models and developing microfluidic chips an effortless experience.
Modular build platforms
With an expanded range of build platforms, print a variety of model sizes and materials with ease and say goodbye to unnecessary waste of photoinks.
The new standard for light bioprinting
Simply explained
Understanding the printing mechanism
The material
The LUMEN X is optimized to build solid hydrogel structure by beginning with a droplet of light-sensitive, liquid PhotoInk™ hydrogels in a vat. Learn more about available biomaterials further down.

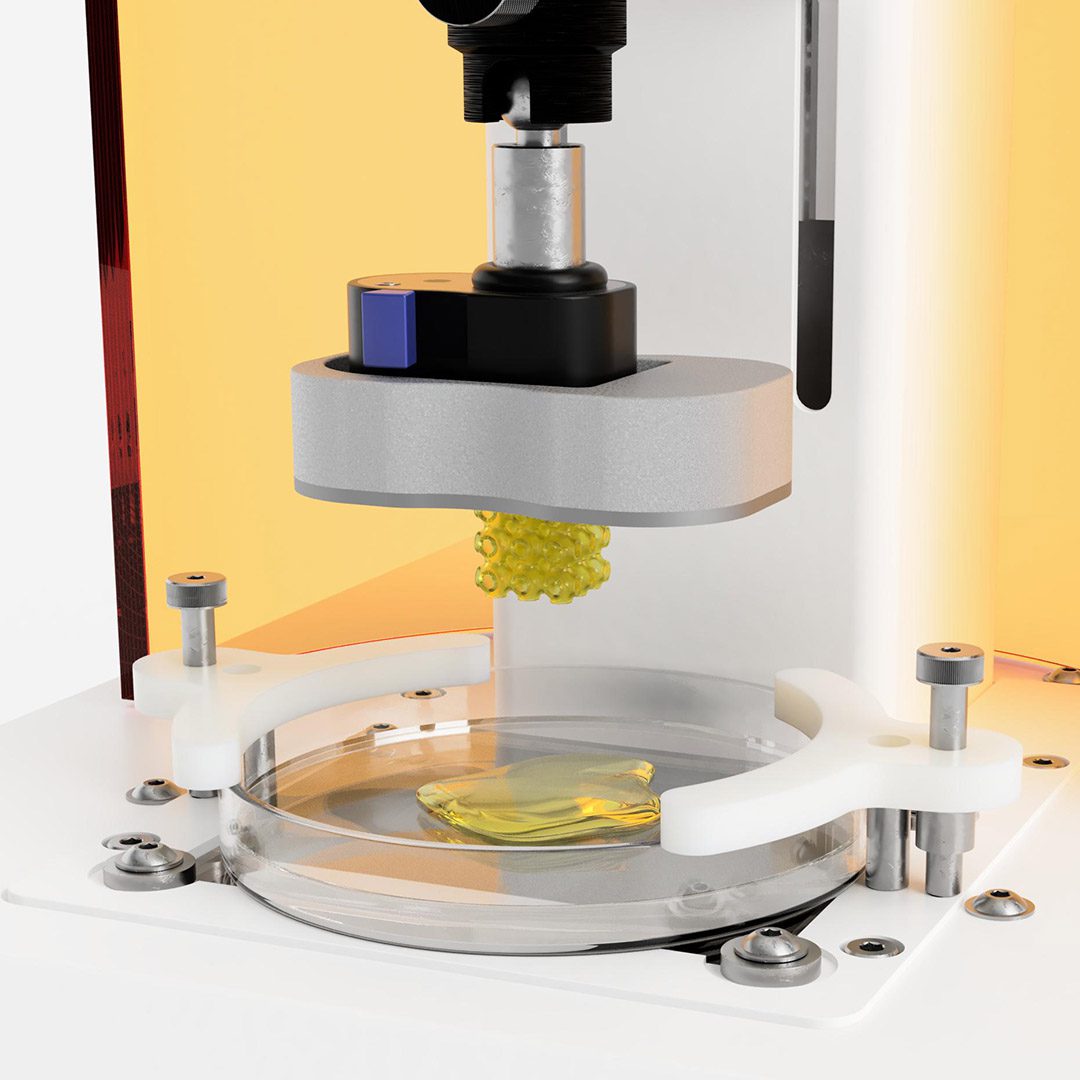

The printing
Building life, one layer at a time.
Key Applications
01.
Microfluidics

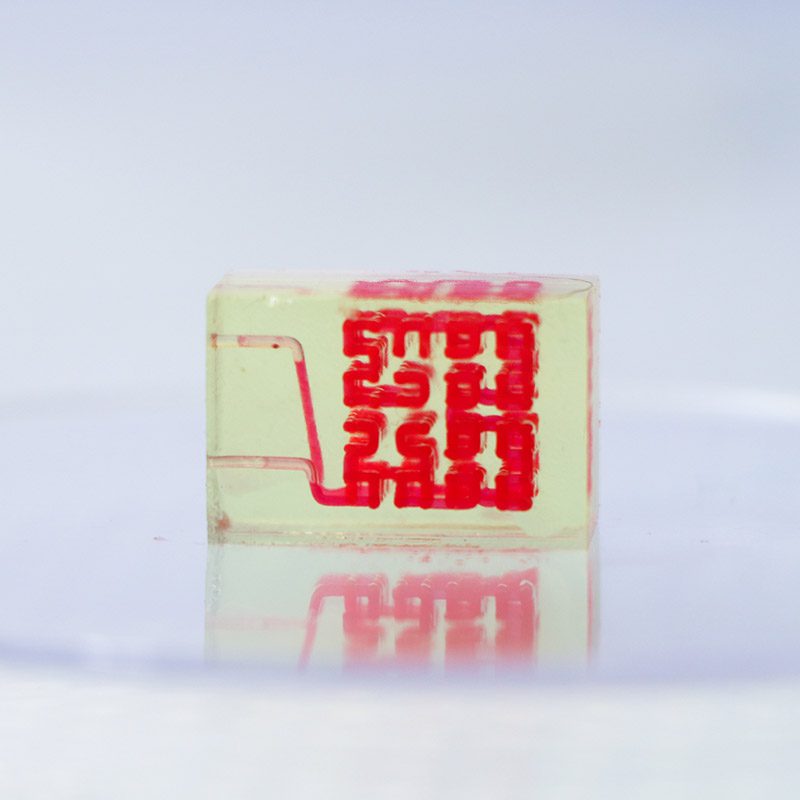

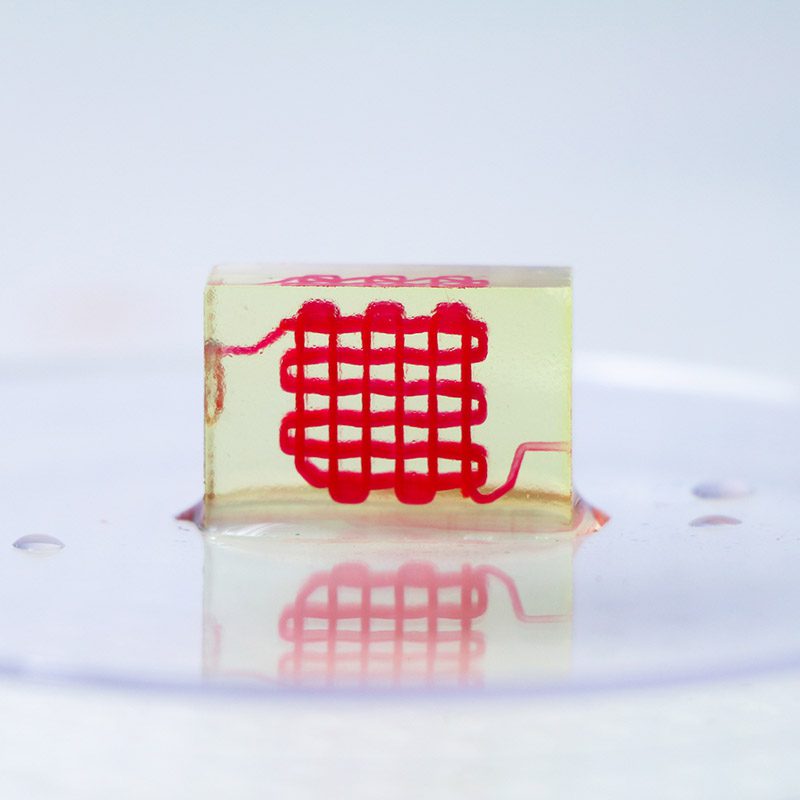

Complex microfluidic structures
With high precision and resolution, the LUMEN X Gen 3 enables the creation of complex microfluidic structures with intricate geometries for controlled fluid flow. Users can work directly with cells or seed them later. The LUMEN X eliminates lengthy casting processes and finally brings a much-desired, time and cost-effective solution for reproducible microfluidic fabrication.
02.
Material development
Develop your own materials without workarounds
The LUMEN X allows users to develop and use their own materials without workarounds or extra fees, opening the door for the development of materials with unique properties and novel tissue engineering applications. With precision control over all key parameters like temperature, intensity and exposure times, researchers can glean a greater understanding of their material’s behavior.
03.
Tissue Engineering

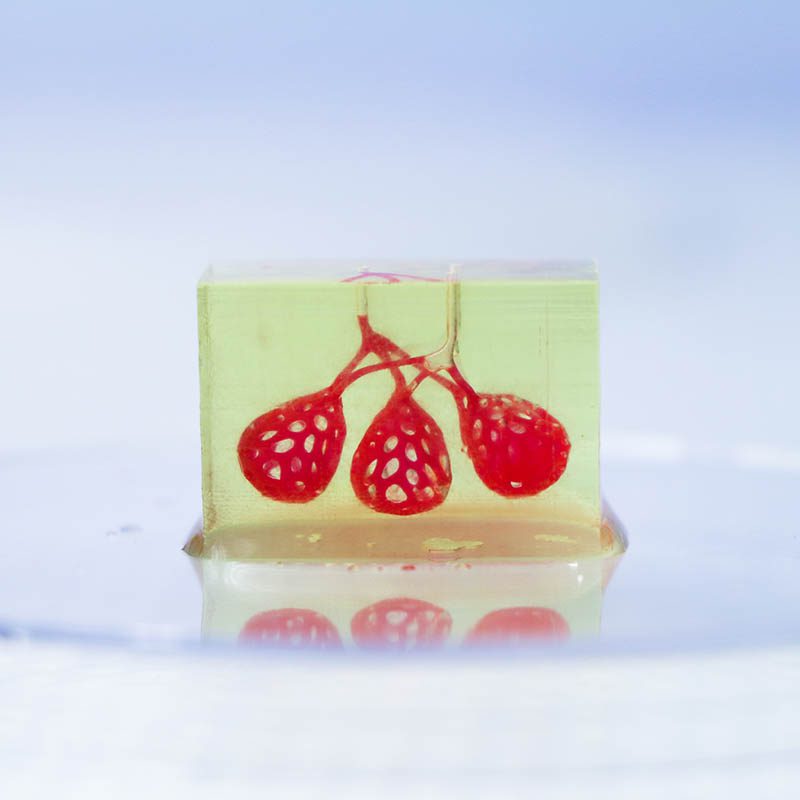

Addressing tissue-engineering challenges
Supported by the DLP technology, the LUMEN X enables researchers to address one of the most long-standing challenges – fabricating complex vascular networks. Coupled with grayscale printing onboard for the first time ever, the LUMEN X Gen 3 truly unlocks a new degree of capability in capturing in-vivo like conditions.
04.
Drug Development
Providing greater insights & lowering costs
With LUMEN X Gen 3, we’re able to provide greater insight into the efficiency of medicinal candidates. With greyscale printing allowing multi-stiffness constructs, an increased build size, it is easier than ever to create diseased or healthy tissue constructs with fully accurate biomimetic properties. These constructs are ready to be dosed with compounds for evaluation in the early-stage compound selection process.
Photoinks and Consumables
Reformulated and rethought for your convenience
With our unwavering commitment to your research success, our seasoned team of biomaterial experts have developed kits with recipes and protocols, which take you from stock solutions to ready-to-print photoinks optimized for use on the LUMEN X Gen 3.
Fine tuned and tailored for optimal performance, PEGDA X is the go to starting ink for DLP printing. Blended with low molecular weight PEGDA, this ready-to-use photoink provides users with a mechanically robust material with high print fidelity.
Customizable and easy to use, PEGDA Soft stock solution is the ideal starting point for researchers looking for a photosensitive material with an inherent stiffness that closely mimics in-vivo conditions and provides an environment conducive to permeability dependent processes like nutrient, waste and gas exchange.
The cornerstone of live cell bioprinting, GelMA provides a biodegradable base material with tremendous cell attachment capabilities and mechanical properties that accurately capture physiological conditions. Provided as a stock solution, researchers have the freedom to make the most of this wonder biomaterial’s tunability. Blend with proteins, growth factors or other photosensitive polymers like PEGDA, to create the ideal recipe for your research application.
Xcite, CELLINK’s novel photoinitiator specifically designed for developing optimal photoinks for light-based bioprinting. With exceptional biocompatibility, gold standard cell viability, and rapid polymerization properties, Xcite enables researchers to develop intricate cellular structures at lightning speeds.
Xsorb is a biocompatible photoabsorber, specifically formulated to enable complex structures like microfluidic systems on CELLINK light-based systems. Produced with stringent quality control, Xsorb provides users with exceptional control, and precision during the DLP printing process.
Ideate. Illuminate. Create.
Enabling intuitive control of every aspect of the printing process
Introducing DNA STUDIO ILLUMINATE, a fresh take on the world’s leading bioprinting software and tailored for light bioprinting and its applications. Available on-board the LUMEN X as well as an advanced version for desktop machines.
FEATURE HIGHLIGHTS
– Alter loaded 3D shapes
– Develop arrays for multiplexed printing
– View microfluidic systems
– Set up grayscale printing for biomechanical gradients
Technical Specifications
| 3D bioprinting technology | DLP printing using layer-by-layer |
| Outer dimensions (L x W x H) | 414 mm x 373 mm x 451 mm |
| Weight | 15.6 kg |
| Build volume (X x Y x Z) | 68 mm x 38 mm x 100 mm |
| Build platforms | Glass bottom and metal platforms (available in three sizes) |
| Pixel resolution (XY) | 35 μm |
| LED Wavelength | 405 nm (FWHM 15 nm) |
| Intensity Range | Up to 30 mW/cm² |
| Temperature Range | Room temperature to 60 °C |
| Sterility | - UV-C (265-285 nm) sterilization - Autoclavable build platforms and sterile photoink vats |
| User Interface | Integrated Display, Tablet or Computer |
| Software | Onboard: Embedded UI, Desktop: DNA Studio Illuminate |
| OS Compatibility | Windows 11 and Windows 10 V20H2 onwards |
| Supported File Types | .stl, .bmp, .gif, .png, .jpg |
| Display | High resolution 10" touch screen, glove-friendly |
| Connectivity | USB-A, USB-C, Ethernet |
| Power Supply Unit | 100-250 VAC, 50-60HZ, Max 26A, 320W |
