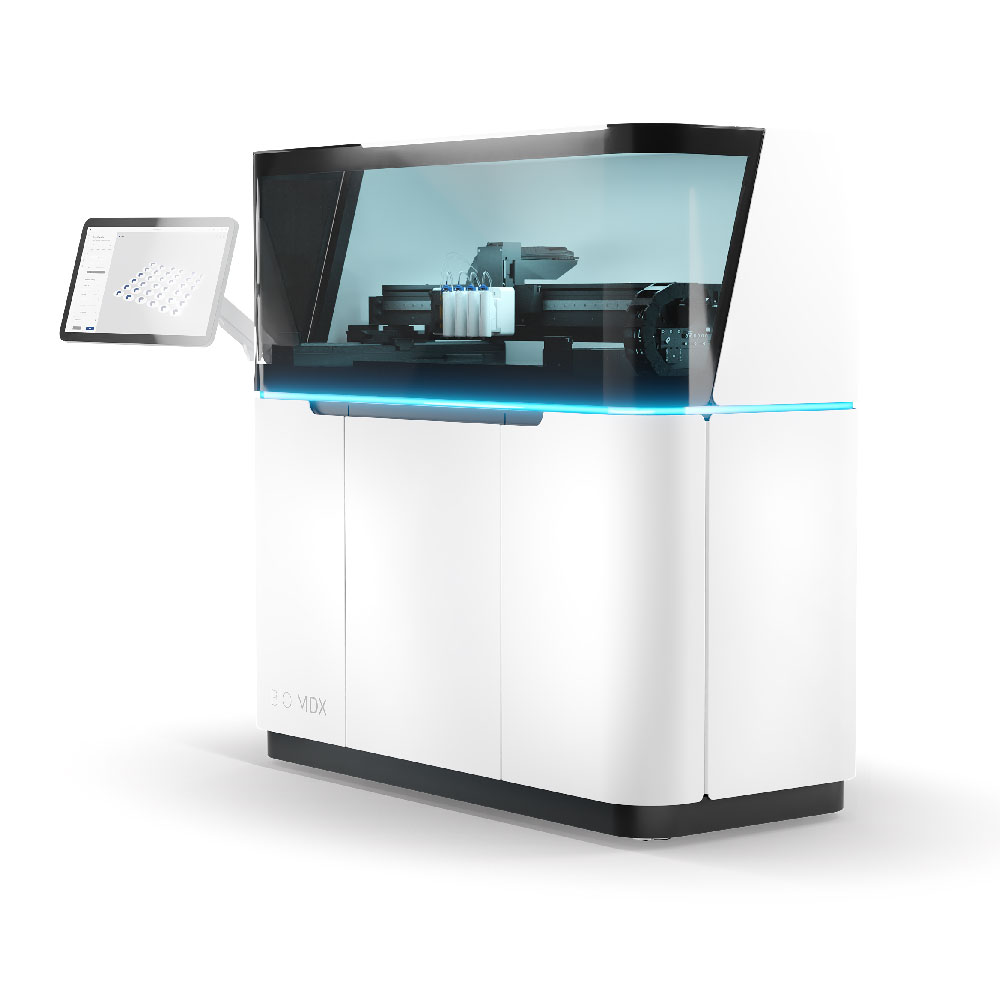

The BIO MDX™ Series

Bioprinting systems for a scaled-up revolution.

The Next Generation of Bioprinters

The first of their kind, these two medical device crossover (MDX) bioprinters, the BIO MDX and the BIO MDX+ are optimized for high-throughput biofabrication with the latest technological advances onboard to facilitate scaling up your research with the utmost efficiency.

Industrial Scale Bioprinting

Fitting up to 27 microplates or 140 slides on printbeds and configured for bulk liquid dispensing, the BIO MDX Series is taking high-throughput bioprinting to unheard-of heights.

Bioprinting at Industrial Scale

With a printbed capacity of 27 microplates or 140 slides and bulk liquid dispensing the BIO MDX takes high throughput bioprinting to unseen heights.

All-in-one, Highly Reproducible Workflows

End-to-end biofabrication in one. The BIO MDX Series enables bioprinting, dosing and QC without interruption to easily automate complete bioprinting workflows. Up to 6 intelligent printheads, Integrated photocuring toolheads, bulk liquid dispensers and a positioning arm bring streamlined efficiency and precision printing to your work, reducing variability for highly reproducible results.

Total Control over Your Environment

Building on the patented Clean Chamber Technology, the BIO MDX Series offers uncompromised sterility with HEPA filters, chamber humidity, temperature and dew-point control. Users can also seamlessly control pressure and speed, as well as set printbed (-10°C to 80°C ) and printhead (0°C to 350°C) temperatures.

Total Control over Your Environment

Building on the patented Clean Chamber Technology, the BIO MDX Series offers uncompromised sterility with HEPA filters, chamber humidity, temperature and dew-point control. Users can also seamlessly control pressure and speed, as well as set printbed (-20°C to 120°C ) and printhead (4°C to 250°C) temperatures.

Unprecedented Precision with the BIO MDX+

The BIO MDX+ offers even more groundbreaking features, including giving researchers total control over spheroid and single-cell dispensing. Using the onboard software, researchers are able to deposit spheroids and single cells with unrivaled precision. This superior positioning accuracy brings us ever closer to totally recapitulating in vivo conditions in tissue models.

Unprecedented Precision with the BIO MDX+

The BIO MDX+ offers even more groundbreaking features, including giving researchers total control over spheroid and single-cell dispensing. Using the onboard software, researchers are able to deposit spheroids and single cells with unrivaled precision. This superior positioning accuracy brings us ever closer to totally recapitulating in vivo conditions in tissue models.

Leverage CELLINK’s industry leading expertise

At CELLINK we have the brightest minds within the world of bioprinting to support and solve your hardest challenges. Work with our application specialists and engineers to create the most effective workflows for your development needs. With outsourcing options available as well, rest assured CELLINK is the correct partner for this stage of your development process.

Leverage CELLINK’s industry leading expertise

At CELLINK we have the brightest minds within the world of bioprinting to support and solve your hardest challenges. Work with our application specialists and engineers to create the most effective workflows for your development needs. With outsourcing options available as well, rest assured CELLINK is the correct partner for this stage of your development process.

A bioprinter for every stage

Feature   BIOX   BIOX6   BIO MDX  BIO MDX+
Number of Modular Printheads  3   6   4   6
Number of
sciDROP NANO
Liquid Dispensers
1 (down to 10 nL)  2 (down to 10 nL)
Max Build Volume
(L x W x H)
13 x 9 x 6.5 cm  13 x 9 x 6.5 cm  82.5 x 36 x 15 cm  82.5 x 36 x 15 cm
Microplate Capacity  1   1   27  27
Slide Capacity  140   140
Accuracy (Absolute position)*  10 µm  10 µm  <10 µm  <10 µm
Precision (Repeat position)*  10 µm  10 µm  <3 µm  <3 µm
Max Speed (mm/s)  40  40  1500   1500
Environmental Control  Patented Clean Chamber Technology  Patented Clean Chamber Technology  Patented Clean
Chamber Technology,
humidity level, dew-point and ambient temperature
Patented Clean
Chamber Technology,
humidity level, dew-point and ambient temperature
Post-printing QC/QA  None  None  Automated QC/QA   Automated QC/QA
Robotic Arm Compatibility  None  Limited  Full compatibility  Full compatibility
Printhead Temperature Range   4°C to 250°C  4°C to 250°C  0°C to 350°C  0°C to 350°C
Printbed Temperature Range  4°C to 65°C  4°C to 65°C  -10°C to 80°C  -10°C to 80°C
Photocuring Capabilities (Wavelengths)
(365 and 405 nm)
4
(365, 405, 425 and 525 nm)

(365, 405, 425, 445, 525 nm)
4
(365, 405, 425 and 525 nm)
Bulk Liquid Dispensing
(1 L reservoir volume)
None  None  1 channel (1 µL accuracy)***  1 channel (1 µL accuracy)***
Single Cell Deposition  None  None  None  Optional add-on
Spheroid Deposition  None  None  None  Optional add-on
Picoliter Dispensing (down to 10pL)   None  None  None  Optional add-on

Number of Modular Printheads  BIOX  3   BIOX6  6   BIO MDX 4   BIO MDX+ 6
Number of
sciDROP NANO
Liquid Dispensers
BIOX  0  BIOX6  0  BIO MDX 1 (down to 10 nL)  BIO MDX+ 2 (down to 10 nL)
Max Build Volume
(L x W x H)
BIOX  13 x 9 x 6.5 cm  BIOX6  13 x 9 x 6.5 cm  BIO MDX 82.5 x 36 x 15 cm  BIO MDX+ 82.5 x 36 x 15 cm
Microplate Capacity  BIOX  1   BIOX6  1   BIO MDX 27  BIO MDX+ 27
Slide Capacity  BIOX  4  BIOX6  4  BIO MDX 140   BIO MDX+ 140
Accuracy (Absolute position)*  BIOX  10 µm  BIOX6  10 µm  BIO MDX <10 µm  BIO MDX+ <10 µm
Precision (Repeat position)*  BIOX  10 µm  BIOX6  10 µm  BIO MDX <3 µm  BIO MDX+ <3 µm
Max Speed (mm/s)  BIOX  40  BIOX6  40  BIO MDX 1500   BIO MDX+ 1500
Environmental Control  BIOX  Patented Clean Chamber Technology  BIOX6  Patented Clean Chamber Technology  BIO MDX Patented Clean
Chamber Technology,
humidity level, dew-point and ambient temperature
BIO MDX+ Patented Clean
Chamber Technology,
humidity level, dew-point and ambient temperature
Post-printing QC/QA  BIOX  None  BIOX6  None  BIO MDX Automated QC/QA   BIO MDX+ Automated QC/QA
Robotic Arm Compatibility  BIOX  None  BIOX6  Limited  BIO MDX Full compatibility  Full compatibility
Printhead Temperature Range   BIOX  4°C to 250°C  BIOX6  4°C to 250°C  BIO MDX 0°C to 350°C  BIO MDX+ 0°C to 350°C
Printbed Temperature Range  BIOX  4°C to 65°C  4°C to 65°C  BIO MDX -10°C to 80°C  BIO MDX+ -10°C to 80°C
Photocuring Capabilities (Wavelengths)  BIOX  2
(365 and 405 nm)
BIOX6  4
(365, 405, 425 and 525 nm)
BIO MDX 4
(365, 405, 425, 445, 525 nm)
BIO MDX+ 4
(365, 405, 425 and 525 nm)
Bulk Liquid Dispensing
(1 L reservoir volume)
BIOX  None  BIOX6  None  BIO MDX 1 channel (1 µL accuracy)***  BIO MDX+ 1 channel (1 µL accuracy)***
Single Cell Deposition  BIOX  None  BIOX6  None  BIO MDX None  BIO MDX+ Optional add-on
Spheroid Deposition  BIOX  None  BIOX6  None  BIO MDX None  BIO MDX+ Optional add-on
Picoliter Dispensing (down to 10pL)   BIOX  None  BIOX6  None  BIO MDX None  BIO MDX+ Optional add-on (
